Inside a centrifugal pump

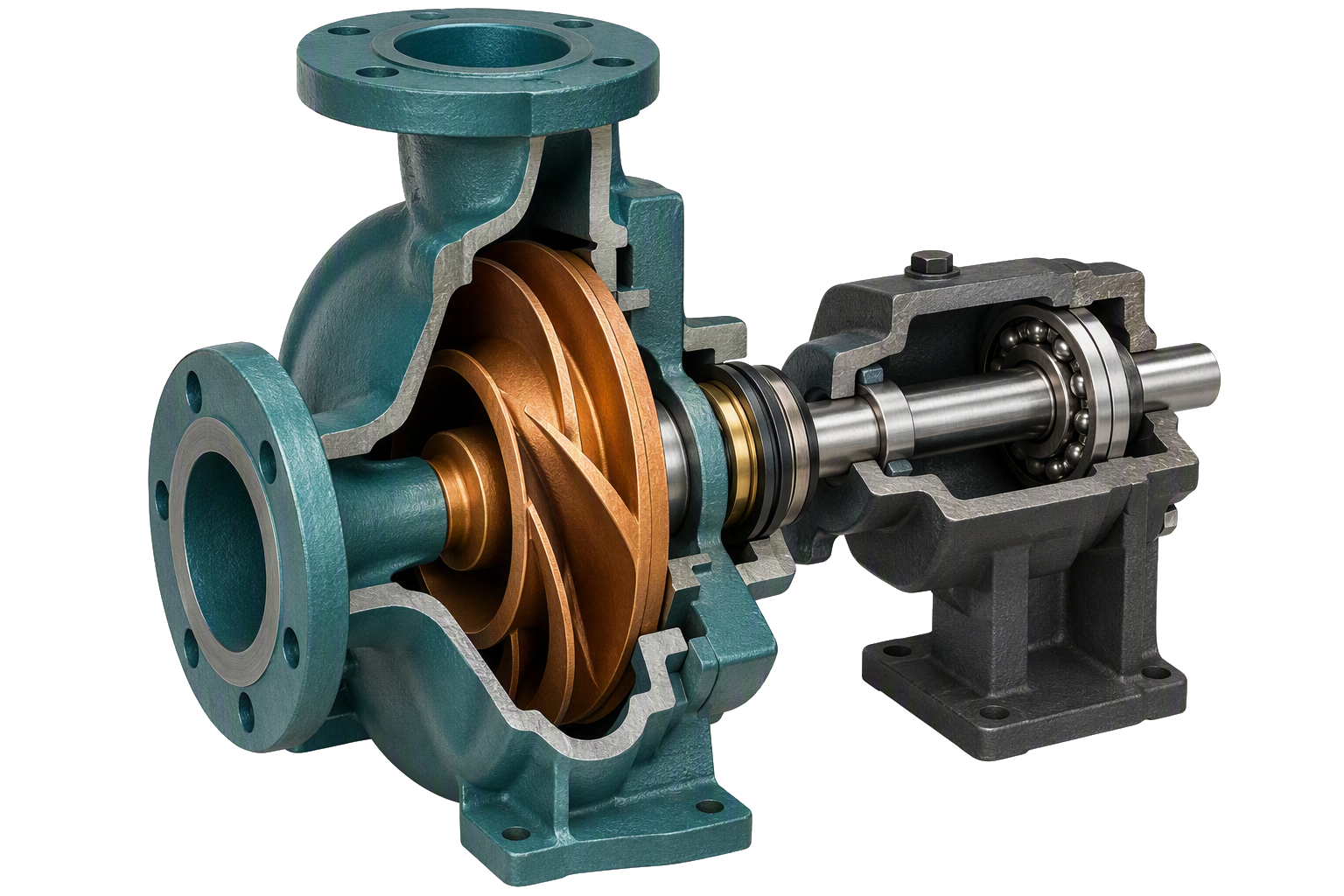

Single-stage end-suction centrifugal pump cutaway

Visible cutaway shows a teal volute casing around a bronze impeller, with the shaft extending right through a seal assembly into a ball-bearing support housing. The suction inlet faces left and the discharge outlet rises at the top.
